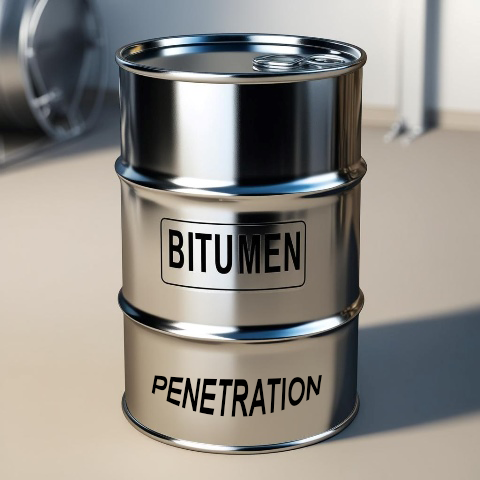

Penetrating Bitumen
Penetrating Grads
Penetrating Bitumen for Road Construction
Penetrating bitumen plays a crucial role in road construction, ensuring durability and performance across different climates.
- In warmer regions, stiffer bitumen with a lower penetration grade is preferred for greater resistance to heat.
- In colder climates, softer bitumen with a higher penetration grade is used to enhance flexibility and prevent cracking.
Test | Test method | 30-40 |
Density | ASTM D-7 | 06/1-01/1 |
Infiltration mm/10, 25C degree | ASTM D-5 | 30-40 |
Softening point ºC | ASTM D-36 | 55-63 |
Elasticity at 25ºC cm | ASTM D-113 | Min 100 |
Flash point ºC | ASTM D-92 | Min250 |
Solubility in disulfide wt%. | ASTM D-4 | 5/99 |
Spot test | AASHTO T 102 | Negative |
Weight loss due to heat %wt. | ASTM D-6 | Max 2 /0 |
Effect of penetration loss on heat, % | ASTM D-6-D-5 | 20 Max |
Test | Test method | 40-50 |
Density | ASTM D-7 | 06/1-01/1 |
Infiltration mm/10, 25C degree | ASTM D-5 | 40-50 |
Softening point ºC | ASTM D-36 | 52-60 |
Elasticity at 25ºC cm | ASTM D-113 | Min 100 |
Flash point ºC | ASTM D-92 | Min250 |
Solubility in disulfide wt%. | ASTM D-4 | 5/99 |
Spot test | AASHTO T 102 | Negative |
Weight loss due to heat %wt. | ASTM D-6 | Max 2 /0 |
Effect of penetration loss on heat, % | ASTM D-6-D-5 | Max20 |
Test | Test method | 60-70 |
Density | ASTM D-7 | 06/1-01/1 |
Infiltration mm/10, 25C degree | ASTM D-5 | 60-70 |
Softening point ºC | ASTM D-36 | 49-56 |
Elasticity at 25ºC cm | ASTM D-113 | Min 100 |
Flash point ºC | ASTM D-92 | Min250 |
Solubility in disulfide wt%. | ASTM D-4 | 5/99 |
Spot test | AASHTO T 102 | Negative |
Weight loss due to heat %wt. | ASTM D-6 | Max 2 /0 |
Effect of penetration loss on heat, % | ASTM D-6-D-5 | Max20 |
Test | Test method | 85-100 |
Density | ASTM D-7 | 5 0/1-1 |
Infiltration mm/10, 25C degree | ASTM D-5 | 85-100 |
Softening point ºC | ASTM D-36 | 45-52 |
Elasticity at 25ºC cm | ASTM D-113 | Min 100 |
Flash point ºC | ASTM D-92 | Min250 |
Solubility in disulfide wt%. | ASTM D-4 | 5/99 |
Spot test | AASHTO T 102 | Negative |
Weight loss due to heat %wt. | ASTM D-6 | Max 2 /0 |
Effect of penetration loss on heat, % | ASTM D-6-D-5 | Max20 |
Test | Test method | 100-120 |
Density | ASTM D-7 | 04/1-01/1 |
Infiltration mm/10, 25C degree | ASTM D-5 | 100-120 |
Softening point ºC | ASTM D-36 | 42-49 |
Elasticity at 25ºC cm | ASTM D-113 | Min 100 |
Flash point ºC | ASTM D-92 | Min250 |
Solubility in disulfide wt%. | ASTM D-4 | 5/99 |
Spot test | AASHTO T 102 | Negative |
Weight loss due to heat %wt. | ASTM D-6 | Max 2 /0 |
Effect of penetration loss on heat, % | ASTM D-6-D-5 | Max20 |
